圓弧圓柱雙級

蝸桿及齒輪一蝸桿減速器

Round Cyclind Double Stage Worm And Gear-worm Decelerator

一、概述Brief:

ZC1型雙級蝸桿及齒輪一蝸桿減速 器符合******標準JB/T7008-93.本威速器主要適用于冶金、礦山、起重.運輸.化工，建筑，建材及輕工等行業。減速度器輸入軸轉速不超過1500/min.減速器工作環境溫度為-40C~ +40'C.當工作環境溫度低于0"C時，起動前潤滑油必須加熱到0'C以上，減速器可正，反向運轉。

The ZC1 doube stage worm and gear-worm decelerator conform to national stand ard JB/T008-93. The reducers are applied in metallurgy, mining, craning,transportation, chemical industry, building, construction and light industry. The imput shaft rotating speed is less than 1500r/min and the ambient temperature is -40'C ~40'C : please note the lubricating oil must be heated up to 0'C if the temperature is below that.The forwark and backwark are appliable.

二、型號.標記，基本參數.尺寸Type,symbol,parameters and size

1.型號Type

CCWU-低速級蝸桿在蝸桿之下的雙級蝸桿減速器; CCWU-double stage worm decelerator with low-speed worm under worm.

CCWS-低速級蝸桿在蝸桿之側的雙級蝸桿減速器: CCWU-double stage worm decelerator with low-speed worm beside worm.

CCWO-低速級蝸桿在蝸桿之上的雙級蝸桿減速器: CCWU-double stage worm decelerator with low-speed worm on worm.

GCWU-低速級蝸桿在蝸桿之下的齒輪一 蝸桿減速器: GCWU-gear- worm decelerator with low-speed worm under worm.

GCWS-低速級蝸桿在蝸桿之側的齒輪-蝸桿減速 器: GCWU-gear wom decelerator with low-speed worm beside worm.

GCWO-低速級蝸桿在蝸桿之上的齒輪一 蝸桿減速器: GCWU-gear- worm decelerator with low-speed worm on worm.

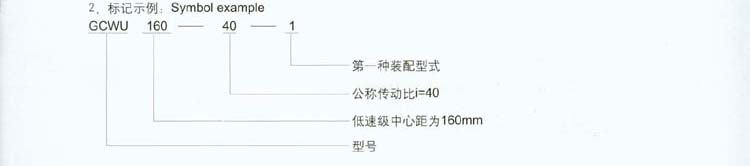

字母的意義: Word meaning

C--表示蝸桿類 別為ZC1 C-ype of worm ZC1

G表示齒輪: G-gear

W_-表 示蝸桿減速器: W-Worm decelerator

U. S. 0- 分別表示低速級蝸桿位于蝸輪之下，之側，之上。U. s. O-The low-speed worm under,beside and on the wom gear
