圓弧圓柱雙級

蝸桿及齒輪-蝸桿減速器

Round Cyclind Double Stage Worm And Gear-worm Decelerator

一、概述Brief:

ZC1型雙級蝸桿及齒輪一蝸桿 減速器符合******標準JB/T7008-93.本減速器主要適用于冶金。礦山.起重，運輸.化工、建筑，建材及輕工等行業。減速度器輸入軸轉速不超過1500r/min.減速器工作環境溫度為-40'C一+40C，當工作環境溫度低于0C時，起動前潤滑油必須加熱到0'C以上，減速器可正，反向運轉。

The ZC1 doube stage worm and gear-worm decelerator conform to national stand ard JB/T008-93. The reducers are applied in metllurgy, mining, craning,ransportation, chemical industry, builing, construction and light industry. The imput shaft rotating speed is less than 1500r/min and the ambient temperature is -40'C ~40'C please note the lubricating oil must be heated up to 0'C if the temperature is below that.

The forwark and backwark are appliable.

二、型號.標記、基本參數.尺寸Type,symbol,parameters and size

1.型號Type

CCWU-低速級蝸桿在蝸桿之下的雙級蝸桿減速器; CCWU-double stage worm decelerator with low- speed worm under worm.

CCWS--低速級蝸桿在蝸桿之側的雙級蝸桿減速器; CCWU-double stage worm decelerator with low- speed worm beside worm.

CCWO-低速級蝸桿在蝸桿之上的雙級蝸桿減速器: CCWU-double stage worm decelerator with low- speed worm on worm.

GCWU-低速級蝸桿在蝸桿之下的齒輪一 蝸桿減速器: GCWU-gear- worm decelerator with low-speed worm under worm.

GCWS-低速級蝸桿在蝸桿之側的齒輪

蝸桿減速器; GCWU-gear- wom decelerator with low-speed worm beside worm.

GCWO-低速級蝸桿在蝸桿之上的齒輪一- 蝸桿減速器: GCWU-gear- worm decelerator with low-speed worm on worm.

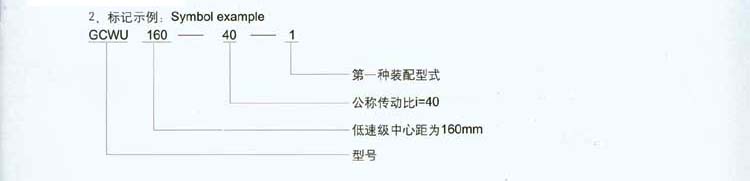

字母的意義: Word meaning

C---表示蝸桿類 別為ZC1 C-ype of worm ZC1

G--表示齒輪: G-gear

W_-表 示蝸桿減速器; W. Worm dceleratr

U. S. 0一 分別表示低速級蝸桿位于蝸輪之下，之側，之上。u. s. O-The low-speed worm under,beside and on the worm gear
