SWL蝸輪螺桿升降機JBT8809-1998
SWL Worm and Worm Wheel Lifter
一、概述Brief:

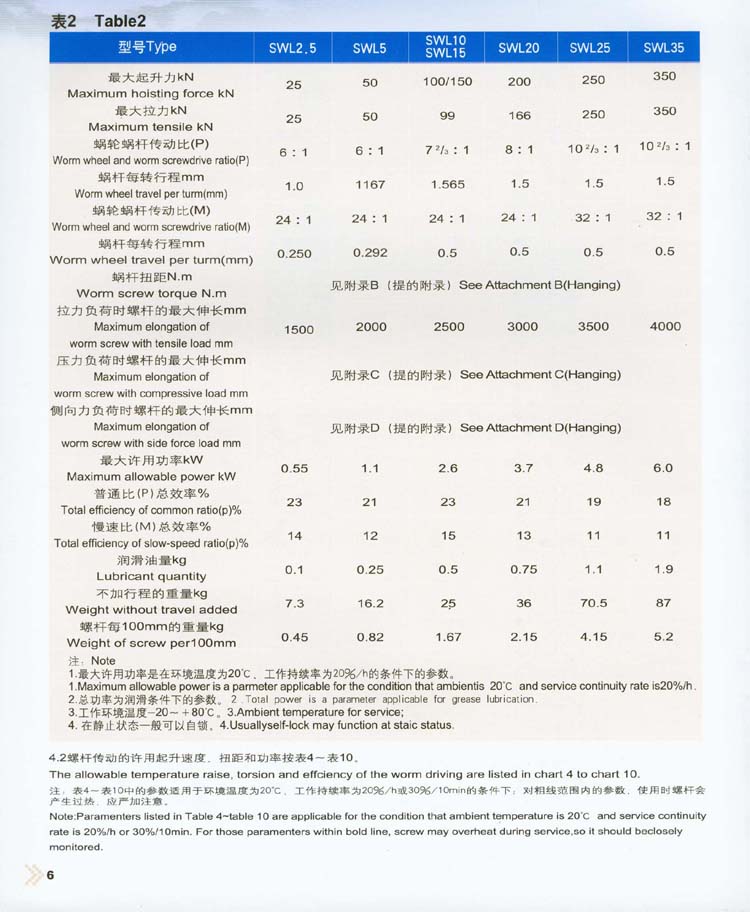

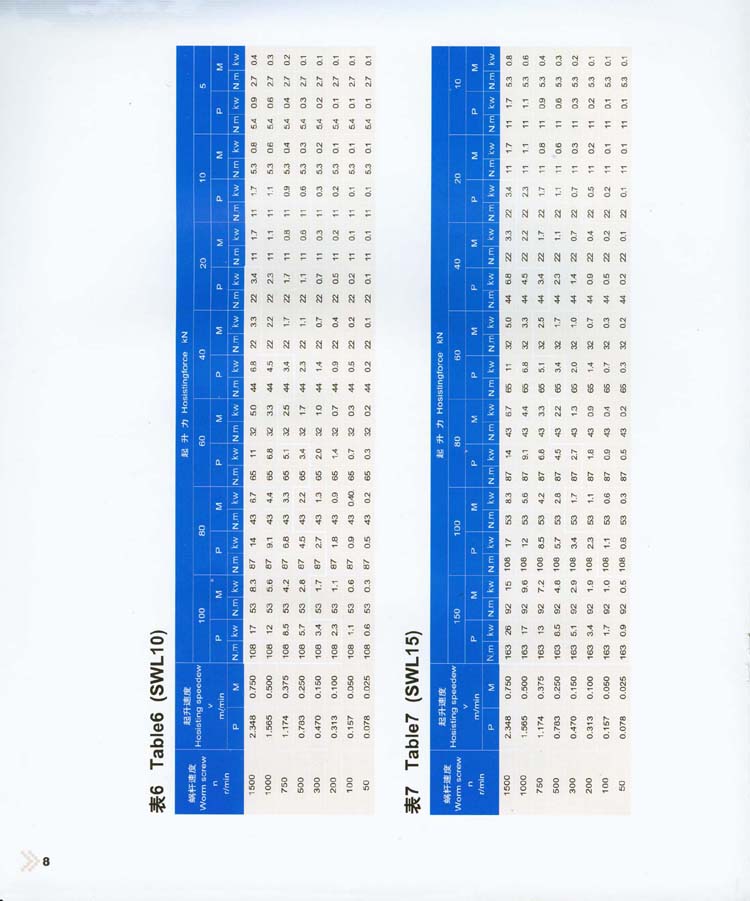

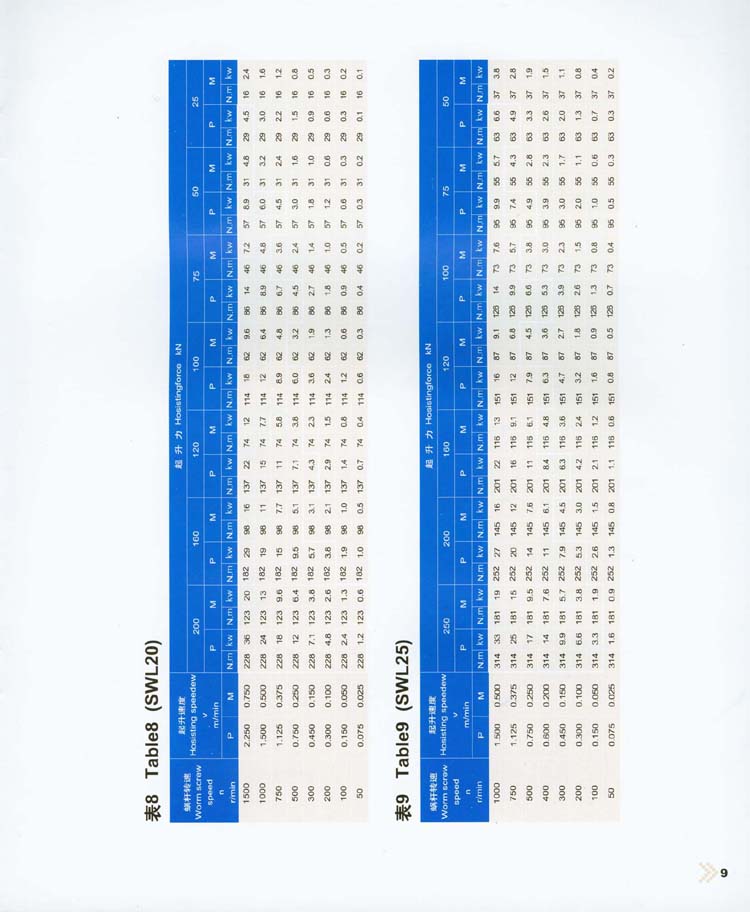

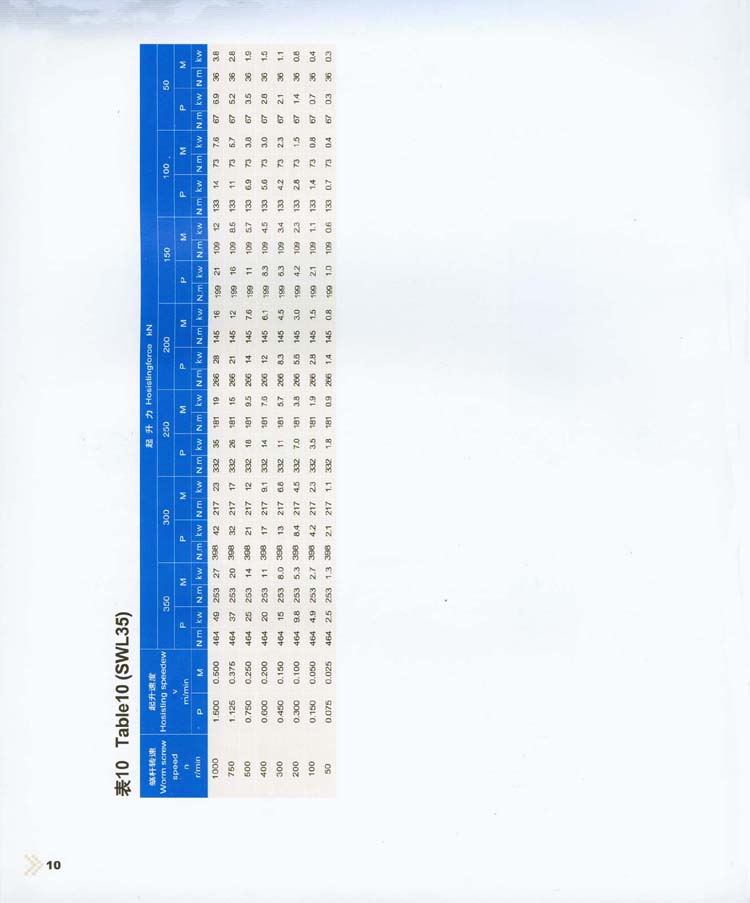

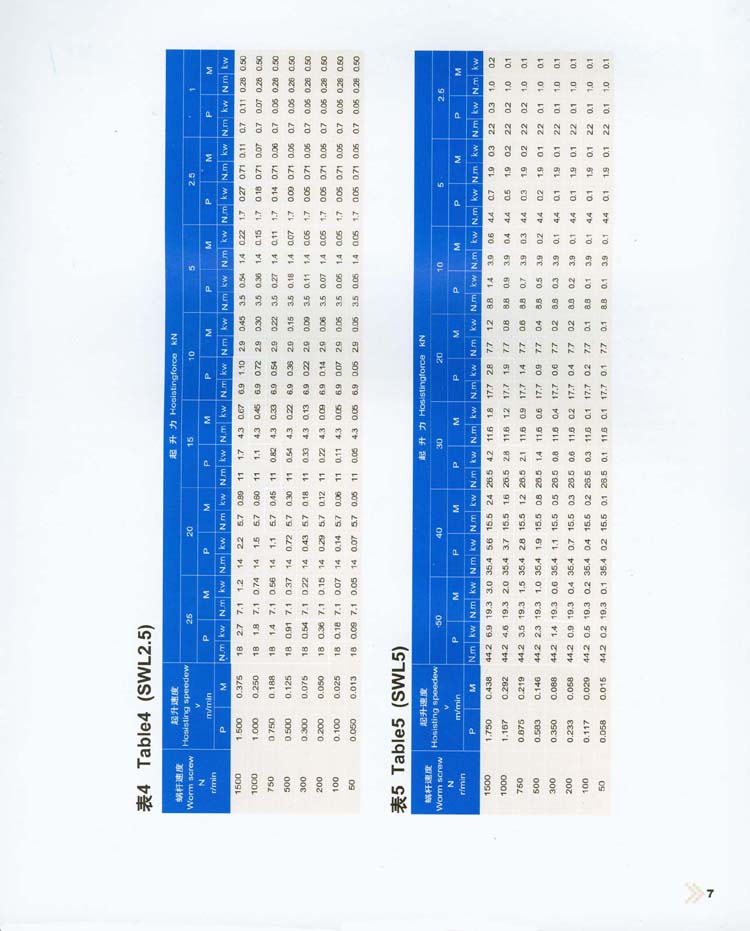

蝸輪螺桿升降機是通過蝸輪轉動螺桿完成提升，下降，推進等功能，廣泛應用于機械，冶金、建筑，水利、化工等各項行業，具有結構緊湊，體積小，安裝方便、可靠性好， 穩定性高，使用壽命長等優點。本系列升降機可自鎖，承載能力在2.51- -35t之間， ***高輸入轉速1500/min.工作溫度在- 20'C一100"C之間。
Worm and worm wheel Liter performs moving up.down and forward by worm driving. It is widely used in field of machinery, architecture, chemistry etc. The lifer has advantages of compact structure,small size, easy installation .good roliability .high stability and long life span. It has self locking. The maximum loading capability is 2.5 to 35 ton and the miximum input RPM is 1500r/m.
The environment working temperature is botween-20'C and 100'C.
二、型式和標記Type and Earmark
2.1結構型式Structurat mode

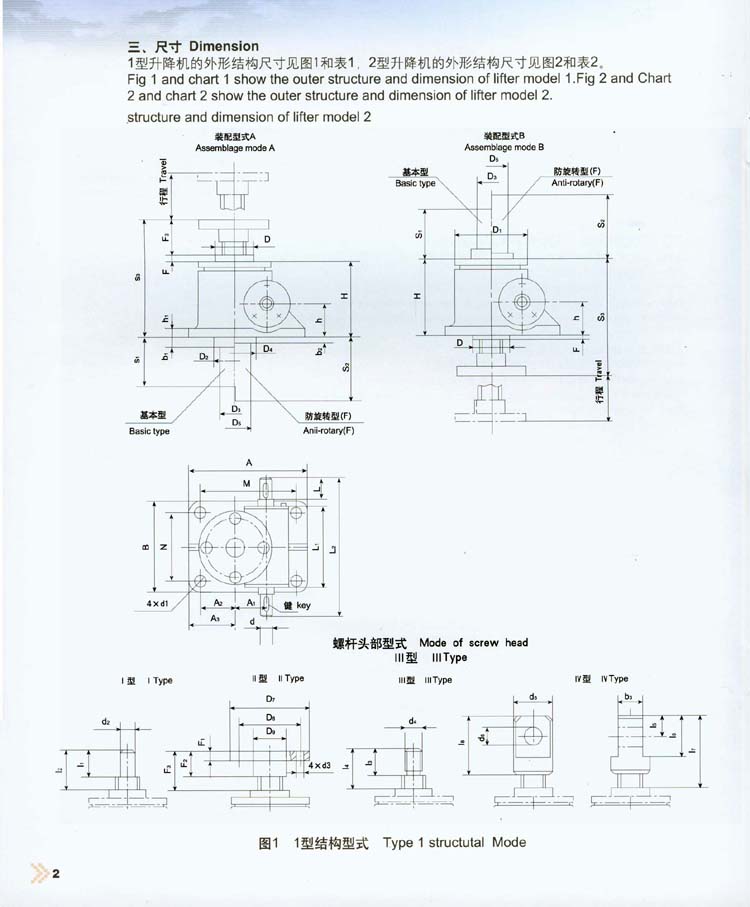

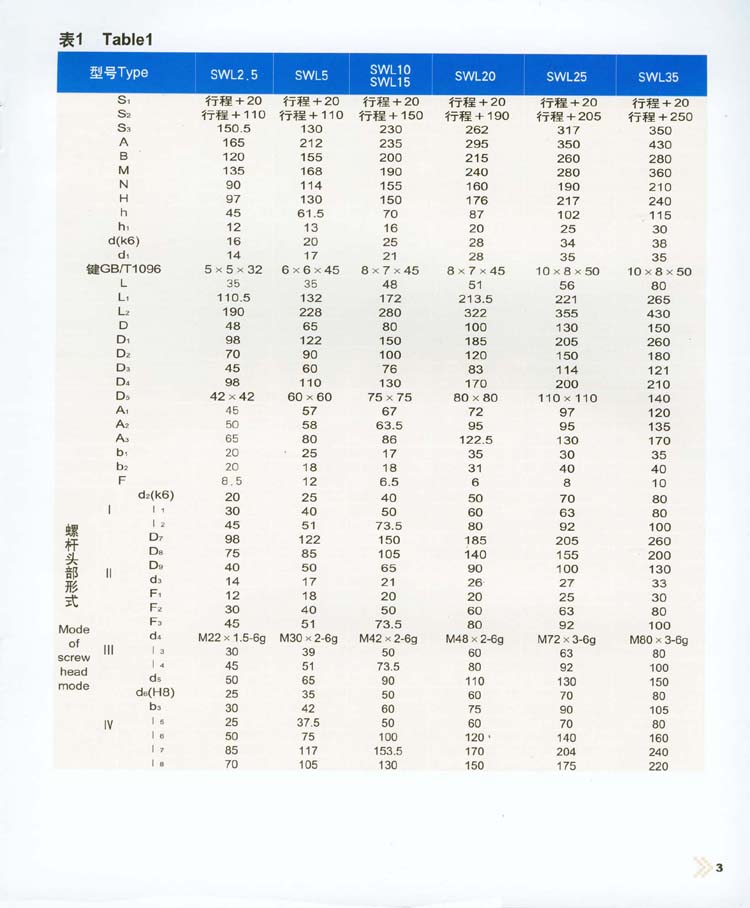

1型一_螺桿作軸向移動 (見圖1)

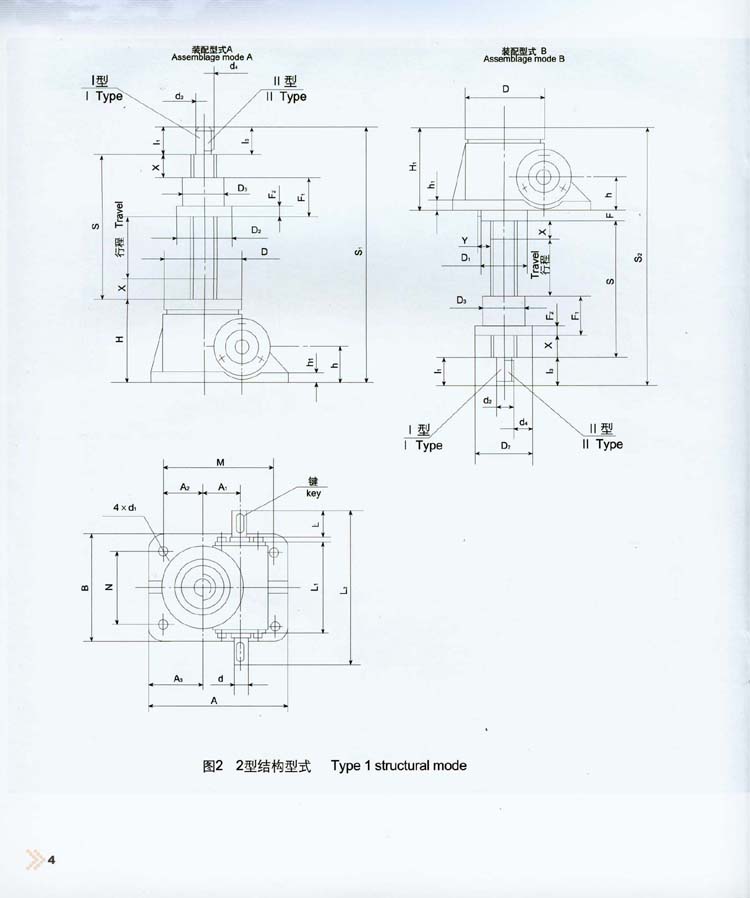

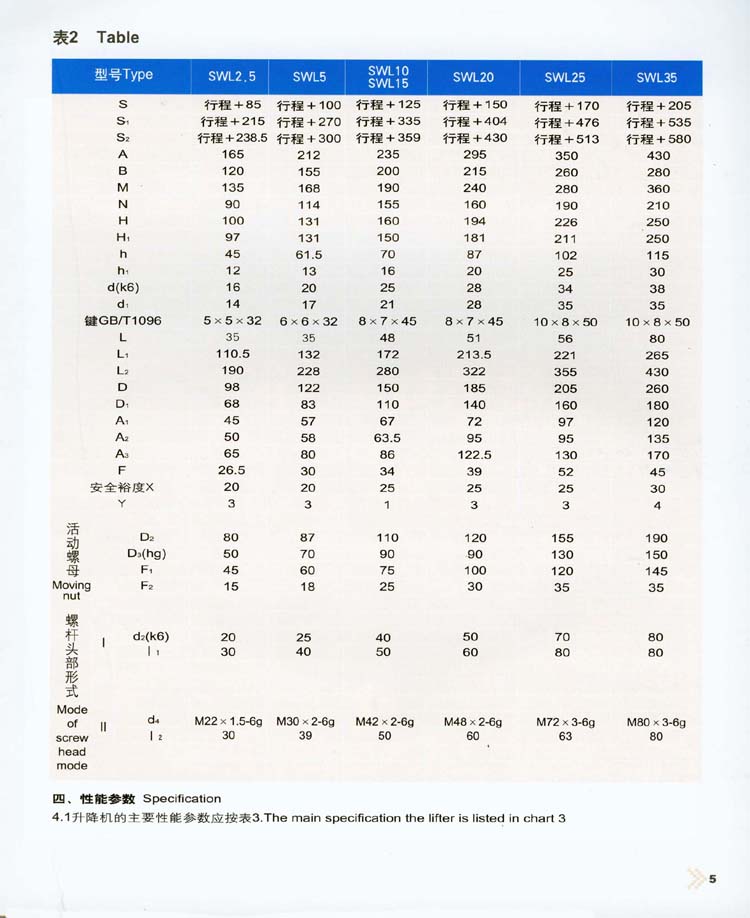

2型一螺桿 作旋轉運動螺桿上的螺母作軸向移動(見圖2)
Type1--Screw spins and rotate axially at the same time(see Figure 1)
Type--Screw spins while nut on Screwis rotating axially(see Figure 1)
2.2裝配型式Assemblage mode
升降機每種結構型式又分為兩種裝配型式
A型一螺桿 (或螺母)向上移動(見圖1和圖2)
B型一-螺桿 (或螺母)向下移動(見圖1和圖2)
There are 2 assemblage modes available for each of elevator structural mode;
Type A--Scrow(or nut) moves upwards (see Figure 1 and Figure 2):
Type A--Screw(or nut) moves downwards (see Figure 1 and Figure 2):
2.3螺桿頭部型式Screw head mode
1型結構型式的螺桿頭部分為1型(圓柱型)，1型(法蘭型)。川型(螺紋型)和IV (扁頭型)四種型式(見圖1):
-2型結構型式的螺桿頭部分為1型(圓柱型)，川型(螺紋型)和IV (扁頭型)兩種型式(見圖2);
-There are 4 type available for the head of screw with Type 1 structural mode:Type 1 (eylinder mode) Typell (lange mode).Type m (thread mode);and Type IV (hat head mode)(see Figure 1).
-There are 2 type available for the head of screw with Type 2 structural mode:Type 1 (cylinder mode) Typell (thread mode)
2.4傳動比Drive ratio
升降機分為兩種傳動比，即普通(P)和慢速(M),
There are 2 drive rations avallable for elevator :comon ratio(P)and slow-speed ratio(M)
2.5螺桿的防護screw protection
1型升降機螺桿的防護分為，基本型，防旋轉型(F)和帶防護罩型(Z).

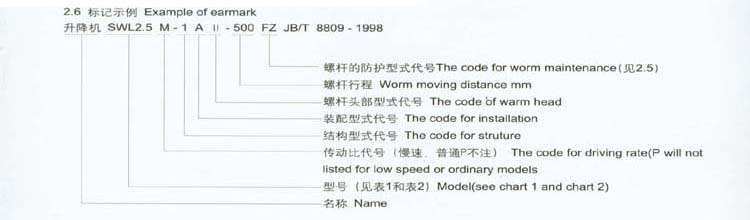

2型升降機螺桿的防護分為，基本型和帶防護罩型(Z),
