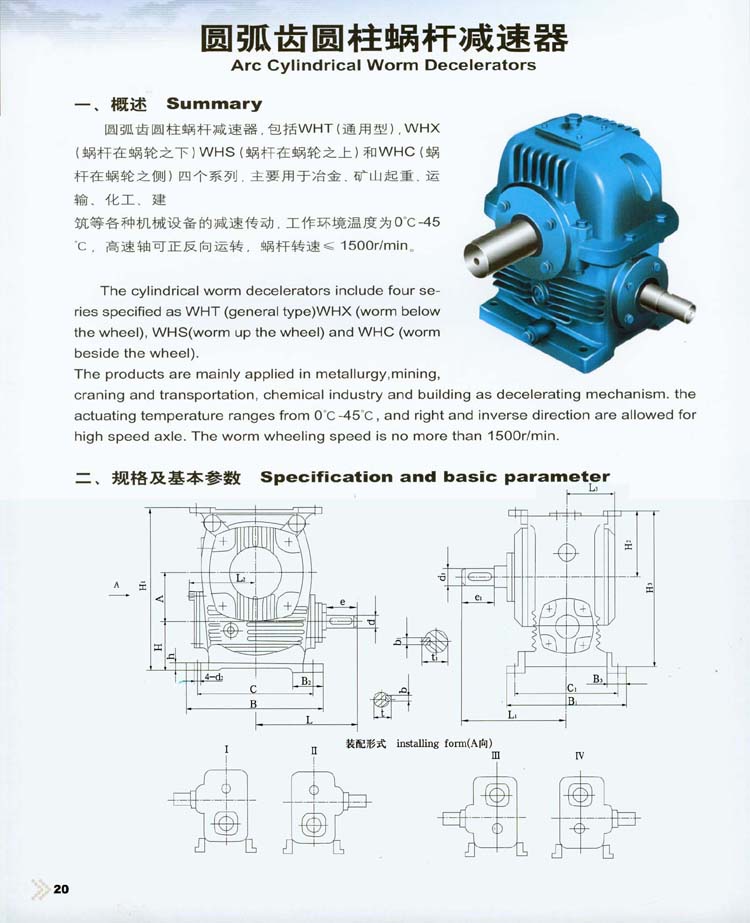

圓弧齒圓柱蝸桿減速器

Arc Cylindrical Worm Decelerators

一、概述，Summary

圓弧齒圓柱蝸桿減速器.包括WHT(通用型)。WHX(蝸桿在蝸輪之下)WHS(蝸桿在蝸輪之上)和WHC(蝸桿在蝸輪之側)四個系列，主要用于冶金.礦山起重.運輸、化工、建筑等各種機械設備的減速傳動，工作環境溫度為0"C -45C，高速軸可正反向運轉，蝸桿轉速≤1500r/min.

The cylindrical worm decelerators include four se-ries specified as WHT (general type)WHX (worm below the wheel), WHS(worm up the wheel) and WHC (worm beside the wheel).

The products are mainly applied in metallurgy,mining, craning and transportation, chemical industry and building as decelerating mechanism. the actuating temperature ranges from 0'C -45C , and right and inverse direction are allowed for high speed axle. The worm wheeling speed is no more than 1500r/min.
