擺線針輪減速機

Cycloid Pin Wheel Decelerators

一、擺線針輪減速機的特點

Charactreistic Of Cycloid Pin Wheel Decelerators

擺線針輪減速機是按照JB/T2982-94采用擺線針齒嚙合的，少齒差行星傳動原理設計而成的一種新型傳動機械，已廣泛地應用到石油 化工、建筑、冶金礦山、起重運輸，紡織印染、工程機械、食品工業、電子電視等各個領域，深受用戶的信賴和一致好評。 擺線針輪減速機有如下特點:

The cycloid pin wheel decelerator is a up-dated transmissing machine designed with the cycloid pin wheel clenching and less teeth engagement mechanism. The products have been widely used in Oil and chemical industry, building, mining and metallurgy, cranes, textile, dying, mechanics. foodstuff and electrical industry, and are well acceped by the customers.

The characteristics are as following:

1.傳動比大:單級傳動比為9-87.雙級傳動比99-7569.多級串聯時傳動比可以******:

2.傳動效率高:單級傳動效率均在90%以上:

3.結構緊湊:體積小，重量輕、高速軸和低速軸在同一軸線上，裝拆方便:

4.運轉平穩噪音低，能承受過載和沖擊;

5.使用可靠，壽命長。

1. Large transmission ratio,for single transmission ratio range is 9-87, and for double 99-7569;

2. High transmission efciency. The single transmissing efficiency is over 90%;

3. Structure well-knitted, small volume, light weight, and high speed axle and low speed axle remain in the same axle, which makes it convenient for installing and disassembling;

4. Low noise when operating, overloading and heavy breaking sustainment;

5. Long service life.

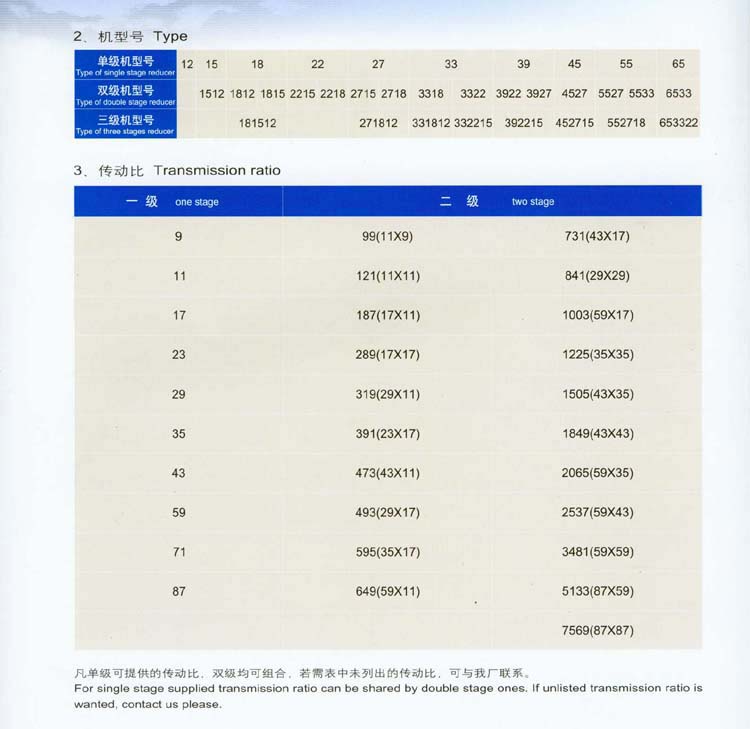

二、擺線針輪減速機的型號、規格

Type And Specification Of Cycloid Pin Wheel Decelerators

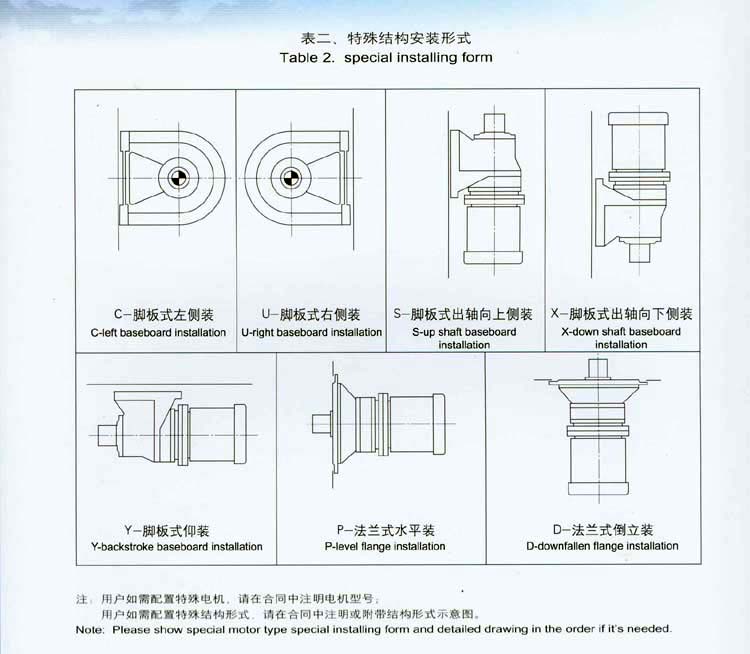

1.型式: BW擺線針輪減速機為雙軸型、臥式安裝。

BL擺線針輪減速機為雙軸型、立式安裝。

BWY擺線針輪減速機為專用異步電動機直聯型、臥式安裝。

BLY擺線針輪減速機為專用異步電動機直聯型、立式安裝。

1.Type: BW type Cycloid pin wheel decelerators are double axlex type, horizonal installed.

BL type Cycloid pin wheel decelerators are double axlex type, vertial installed.

BWY Cycloid pin wheel decelerators are direct connecting type with special asyn chronous motor, horizontal installed.

BLY Cycloid pin wheel decelerators are direct connecting type with special asyn- chronous motor, vertial installed.
